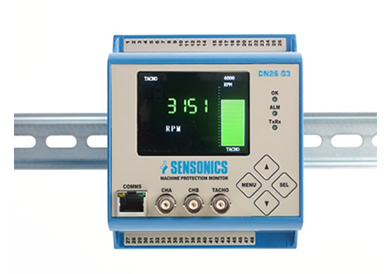

DN26 G3 Tacho & Speed Monitor

Fully Programable DN26-G3 Overspeed Monitor with:

1x 4…20mA for DCS
3x relays for Alarm, Danger and system Healthiness
Buffered Output on BNC and Terminal
Value display in Digital and Bargraph format

Input: Eddy Current Probes / Drivers from a toothed wheel
Magnetic / Hall Effect Probes
Power: 24V dc (22 – 28V dc).
Display: 3 digit LCD display switchable between alarm setpoints.
Display is in kRPM
Outputs: 1 x 4-20mA outputs proportional to speed.
Signal: Buffered raw transducer signal available on BNC connector for analysis
purposes. TTL output on terminals
Alarms: 2 x individually adjustable level alarms
1 x system integrity alarm.
Alarm levels are selectable on site
